Vacuum cryogenic Pipe Series Pricelist
Product Brief Description:
- High-performance materials: Our vacuum cryogenic pipe series utilizes advanced materials that are tailored to function effectively in low-temperature and vacuum environments, ensuring reliability and durability.
- Comprehensive range of sizes and specifications: We offer a variety of sizes and specifications to meet the diverse needs of different applications and systems, providing flexibility and options for our customers.
- Customization capabilities: As a manufacturing factory, we have the expertise to provide customized solutions to meet unique requirements, including specific dimensions, materials, and performance features.
- Competitive pricing: We prioritize competitive pricing without compromising the quality and performance of our vacuum cryogenic pipe series, offering cost-effective solutions to our customers.
- Specialized manufacturing expertise: With years of experience and expertise in producing vacuum cryogenic products, we are dedicated to delivering high-quality and dependable pipe series to meet industry demands.
Product Details Description:
High-Performance Materials Catering to Extreme Environments Our vacuum cryogenic pipe series pricelist features products crafted from high-performance materials specifically engineered to withstand and perform optimally in low-temperature and vacuum conditions. These materials ensure the reliability and durability of our pipes, making them suitable for a wide range of industrial applications operating in demanding environments.
Comprehensive Range of Sizes and Specifications for Diverse Needs We offer a comprehensive range of sizes and specifications within our vacuum cryogenic pipe series, providing flexibility and options to meet the diverse requirements of different applications and systems. From various diameters to different length options, our products are designed to cater to a wide array of industrial needs, allowing customers to choose the most suitable pipe for their specific requirements.
Customization Capabilities for Tailored Solutions As a leading manufacturing factory, we understand the importance of tailored solutions. Our expertise in customization enables us to work closely with our customers to provide vacuum cryogenic pipes that meet precise specifications, including specific dimensions, materials, and performance features. This customization capability ensures that our pipes are perfectly suited to the unique requirements of each application, maximizing their effectiveness.
Competitive Pricing for Cost-Effective Solutions While maintaining a focus on quality and performance, we are committed to offering competitive pricing for our vacuum cryogenic pipe series. By doing so, we aim to provide cost-effective solutions that deliver exceptional value without compromising the reliability and durability that are inherent to our products. Our goal is to ensure that our customers receive high-quality pipes at competitive prices.
Specialized Manufacturing Expertise for Dependable Products With years of specialized manufacturing expertise in vacuum cryogenic products, we possess the knowledge and capability to deliver high-quality and dependable pipe series that meet industry demands. Our commitment to excellence and reliability is reflected in the design, production, and performance of our vacuum cryogenic pipes, making them an ideal choice for critical industrial applications.
In summary, our vacuum cryogenic pipe series pricelist represents our dedication to providing high-quality, reliable, and durable products that cater to the specific requirements of low-temperature and vacuum environments. With a focus on high-performance materials, diverse sizes and specifications, customization capabilities, competitive pricing, and specialized manufacturing expertise, we strive to meet the needs of our customers and industry demands with exceptional products.
Video
Vacuum Insulated Piping
Vacuum Insulated Pipe (VI Piping), namely Vacuum Jacketed Pipe (VJ Piping), as a Perfect substitute for conventional piping insulation. Compared with conventional piping insulation, the heat leakage value of VIP is only 0.05~0.035 times of conventional piping insulation. Significantly save energy and cost for customers.
The product series of Vacuum Jacketed Pipe, Vacuum Jacketed Hose, Vacuum Jacketed Valve, and Phase Separator in HL Cryogenic Equipment Company, which passed through a series of extremely strict technical treatments, are used for transferring of liquid oxygen, liquid nitrogen, liquid argon, liquid hydrogen, liquid helium, LEG and LNG, and these products are serviced for cryogenic equipment (e.g. cryogenic tanks, dewars and coldboxes etc.) in industries of air separation, gases, aviation, electronics, superconductor, chips, automation assembly, food & beverage, pharmacy, hospital, biobank, rubber, new material manufacturing chemical engineering, iron & steel, and scientific research etc.
Three Connection Types of VI Piping
The three connection types here apply only to the connection positions between VI pipes. When VI Pipe connects with equipment, storage tank and so on, the connection joint can be customized according to customer requirements.
In order to maximize the different needs of customers, Vacuum Insulated Pipe has developed three connection types, namely Vacuum Bayonet Connection Type with Clamps, Vacuum Bayonet Connection Type with Flanges and Bolts and Welded Connection Type. They have different advantages and are suitable for different working conditions.
Scope of Application
|

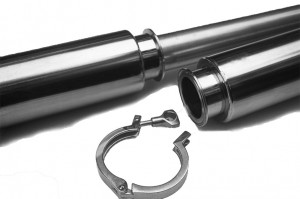

Vacuum Bayonet Connection Type with Clamps |

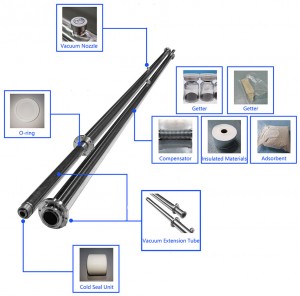

Vacuum Bayonet Connection Type with Flanges and Bolts |

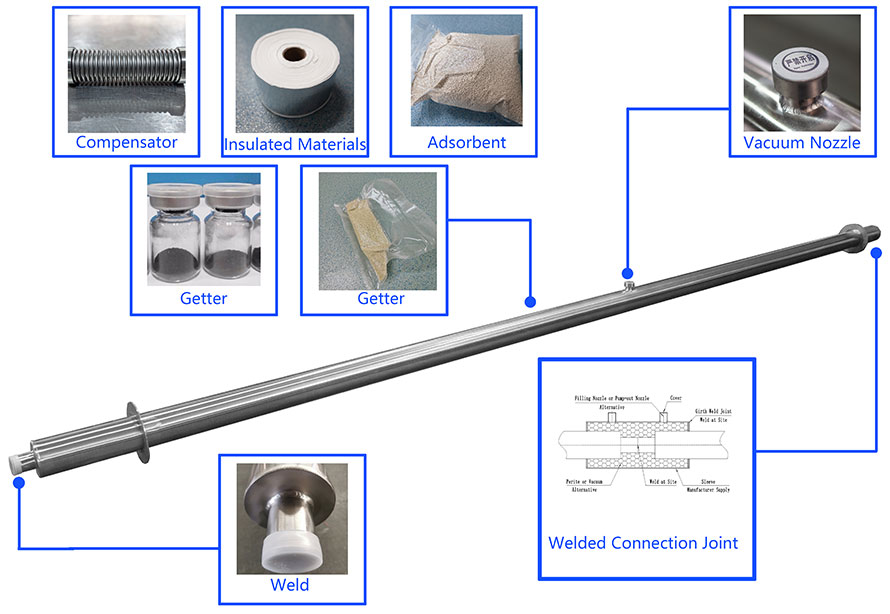

Welded Connection Type |
|
|
Connection Type |
Clamps |
Flanges and Bolts |
Weld |
|
Insulation Type at joints |
Vacuum |
Vacuum |
Perlite or Vacuum |
|
On-site Insulated Treatment |
No |
No |
Yes, perlite filled into or vacuum pump out from the Insulated Sleeves at joints. |
|
Nominal Diameter of Inner Pipe |
DN10(3/8")~DN25(1") |
DN10(3/8")~DN80(3") |
DN10(3/8")~DN500(20") |
|
Design Pressure |
≤8 bar |
≤16 bar |
≤64 bar |
|
Installation |
Easy |
Easy |
Weld |
|
Design Temperature |
-196℃~ 90℃ (LH2 & LHe：-270℃ ~ 90℃) |
||
|
Length |
1 ~ 8.2 meter/pcs |
||
|
Material |
300 Series Stainless Steel |
||
|
Medium |
LN2, LOX, LAr, LHe, LH2, LEG, LNG |
||
Product Scope of Supply
|
Product |
Specification |
Vacuum Bayonet Connection with Clamps |
Vacuum Bayonet Connection with Flanges and Bolts |
Weld Insulated Connection |
|
Vacuum Insulated Pipe |
DN8 |
YES |
YES |
YES |
|
DN15 |
YES |
YES |
YES |
|
|
DN20 |
YES |
YES |
YES |
|
|
DN25 |
YES |
YES |
YES |
|
|
DN32 |
/ |
YES |
YES |
|
|
DN40 |
/ |
YES |
YES |
|
|
DN50 |
/ |
YES |
YES |
|
|
DN65 |
/ |
YES |
YES |
|
|
DN80 |
/ |
YES |
YES |
|
|
DN100 |
/ |
/ |
YES |
|
|
DN125 |
/ |
/ |
YES |
|
|
DN150 |
/ |
/ |
YES |
|
|
DN200 |
/ |
/ |
YES |
|
|
DN250 |
/ |
/ |
YES |
|
|
DN300 |
/ |
/ |
YES |
|
|
DN400 |
/ |
/ |
YES |
|
|
DN500 |
/ |
/ |
YES |
Technical Characteristic
| Compensator Design Pressure | ≥4.0MPa |
| Design Temperature | -196C~90℃ （LH2 & LHe：-270~90℃） |
| Ambient Temperature | -50~90℃ |
| Vacuum Leakage Rate | ≤1*10-10Pa*m3/S |
| Vacuum Level after Guarantee | ≤0.1 Pa |
| Insulated Method | High Vacuum Multi-Layer Insulation. |
| Adsorbent and Getter | Yes |
| NDE | 100% Radiographic Examination |
| Test Pressure | 1.15 Times Design Pressure |
| Medium | LO2、LN2、LAr、LH2、LHe、LEG、LNG |
Dynamic and Static Vacuum Insulated Piping System
Vacuum Insulated (VI) Piping System can be divided into Dynamic and Static VI Piping System.
l The Static VI Piping is fully completed in the manufacturing factory.
l The Dynamic VI Piping is offered a more stable vacuum state by a continuous pumping of vacuum pump system on site, and the rest of the assembly and process treatment is still in the manufacturing factory.
| Dynamic Vacuum Insulated Piping System | Static Vacuum Insulated Piping System | |
| Introduction | The vacuum degree of the vacuum interlayer is monitored continuously, and the vacuum pump is automatically controlled to open and close, to ensure the stability and effectiveness of vacuum degree | VJPs complete the vacuum insulation work in the manufacturing plant. |
| Advantages | The vacuum retention is more stable, basically eliminate the vacuum maintenance in the future working. | More economical investment and simple on-site installation |
| Vacuum Bayonet Connection Type with Clamps |
Applicative |
Applicative |
| Vacuum Bayonet Connection Type with Flanges and Bolts |
Applicative |
Applicative |
| Welded Connection Type |
Applicative |
Applicative |
Dynamic Vacuum Insulated Piping System: Consist of Vacuum Insulated Pipes, Jumper Hoses and Vacuum Pump System (including the vacuum pumps, solenoid valves and vacuum gauges).
Specification and Model
HL-PX-X-000-00-X
Brand
HL Cryogenic Equipment
Description
PD: Dynamic VI Pipe
PS: Static VI Pipe
Connection Type
W: Welded Type
B: Vacuum Bayonet Type with Clamps
F: Vacuum Bayonet Type with Flanges and Bolts
Nominal Diameter of Inner Pipe
010: DN10
…
080: DN80
…
500: DN500
Design Pressure
08: 8bar
16: 16bar
25: 25bar
32: 32bar
40: 40bar
Material of Inner Pipe
A: SS304
B: SS304L
C: SS316
D: SS316L
E:Other
Static Vacuum Insulated Piping System
|
Model |
Connection Type |
Nominal Diameter of Inner Pipe |
Design Pressure |
Material of Inner Pipe |
Standard |
Remark |
|
HLPSB01008X |
Vacuum Bayonet Connection Type with Clamps for Static Vacuum Insulated Piping System |
DN10, 3/8" |
8 bar
|
300 Series Stainless Steel |
ASME B31.3 |
X:
Material of Inner Pipe. A is 304, B is 304L, C is 316, D is 316L, E is other. |
|
HLPSB01508X |
DN15, 1/2" |
|||||
|
HLPSB02008X |
DN20, 3/4" |
|||||
|
HLPSB02508X |
DN25, 1" |
Nominal Diameter of Inner Pipe: Recommended ≤ DN25 or 1". Or selects the Vacuum Bayonet Connection Type with Flanges and Bolts (from DN10, 3/8" to DN80, 3"), Welded Connection Type VIP (from DN10, 3/8" to DN500, 20")
Nominal Diameter of Outer Pipe: Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Design Pressure: Recommended ≤ 8 bar. Or selects the Vacuum Bayonet Connection Type with Flanges and Bolts (≤16 bar), Welded Connection Type (≤64 bar)
Material of Outer Pipe: Without special requirement, the material of inner pipe and outer pipe will be selected the same.
|
Model |
Connection Type |
Nominal Diameter of Inner Pipe |
Design Pressure |
Material of Inner Pipe |
Standard |
Remark |
|
HLPSF01000X |
Vacuum Bayonet Connection Type with Flanges and Bolts for Static Vacuum Insulated Piping System |
DN10, 3/8" |
8~16 bar |
300 Series Stainless Steel |
ASME B31.3 |
00:
Design Pressure. 08 is 8bar, 16 is 16bar.
X: Material of Inner Pipe. A is 304, B is 304L, C is 316, D is 316L, E is other. |
|
HLPSF01500X |
DN15, 1/2" |
|||||
|
HLPSF02000X |
DN20, 3/4" |
|||||
|
HLPSF02500X |
DN25, 1" |
|||||
|
HLPSF03200X |
DN32, 1-1/4" |
|||||
|
HLPSF04000X |
DN40, 1-1/2" |
|||||
|
HLPSF05000X |
DN50, 2" |
|||||
|
HLPSF06500X |
DN65, 2-1/2" |
|||||
|
HLPSF08000X |
DN80, 3" |
Nominal Diameter of Inner Pipe: Recommended ≤ DN80 or 3". Or selects the Welded Connection Type (from DN10, 3/8" to DN500, 20"), Vacuum Bayonet Connection Type with Clamps (from DN10, 3/8" to DN25, 1").
Nominal Diameter of Outer Pipe: Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Design Pressure: Recommended ≤ 16 bar. Or selects Welded Connection Type (≤64 bar).
Material of Outer Pipe: Without special requirement, the material of inner pipe and outer pipe will be selected the same.
|
Model |
Connection Type |
Nominal Diameter of Inner Pipe |
Design Pressure |
Material of Inner Pipe |
Standard |
Remark |
|
HLPSW01000X |
Welded Connection Type for Static Vacuum Insulated Piping System |
DN10, 3/8" |
8~64 bar |
300 Series Stainless Steel |
ASME B31.3 |
00:
Design Pressure 08 is 8bar, 16 is 16bar, and 25, 32, 40, 64.
X: Material of Inner Pipe. A is 304, B is 304L, C is 316, D is 316L, E is other. |
|
HLPSW01500X |
DN15, 1/2" |
|||||
|
HLPSW02000X |
DN20, 3/4" |
|||||
|
HLPSW02500X |
DN25, 1" |
|||||
|
HLPSW03200X |
DN32, 1-1/4" |
|||||
|
HLPSW04000X |
DN40, 1-1/2" |
|||||
|
HLPSW05000X |
DN50, 2" |
|||||
|
HLPSW06500X |
DN65, 2-1/2" |
|||||
|
HLPSW08000X |
DN80, 3" |
|||||
|
HLPSW10000X |
DN100, 4" |
|||||
|
HLPSW12500X |
DN125, 5" |
|||||
|
HLPSW15000X |
DN150, 6" |
|||||
|
HLPSW20000X |
DN200, 8" |
|||||
|
HLPSW25000X |
DN250, 10" |
|||||
|
HLPSW30000X |
DN300, 12" |
|||||
|
HLPSW35000X |
DN350, 14" |
|||||
|
HLPSW40000X |
DN400, 16" |
|||||
|
HLPSW45000X |
DN450, 18" |
|||||
|
HLPSW50000X |
DN500, 20" |
Nominal Diameter of Outer Pipe: Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Material of Outer Pipe: Without special requirement, the material of inner pipe and outer pipe will be selected the same.
Dynamic Vacuum Insulated Piping System
|
Model |
Connection Type |
Nominal Diameter of Inner Pipe |
Design Pressure |
Material of Inner Pipe |
Standard |
Remark |
|
HLPDB01008X |
Vacuum Bayonet Connection Type with Clamps for Static Vacuum Insulated Piping System |
DN10, 3/8" |
8 bar |
300 Series Stainless Steel |
ASME B31.3 |
X:Material of Inner Pipe.
A is 304, B is 304L, C is 316, D is 316L, E is other. |
|
HLPDB01508X |
DN15, 1/2" |
|||||
|
HLPDB02008X |
DN20, 3/4" |
|||||
|
HLPDB02508X |
DN25, 1" |
Nominal Diameter of Inner Pipe: Recommended ≤ DN25 or 1". Or selects the Vacuum Bayonet Connection Type with Flanges and Bolts (from DN10, 3/8" to DN80, 3"), Welded Connection Type VIP (from DN10, 3/8" to DN500, 20")
Nominal Diameter of Outer Pipe: Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Design Pressure: Recommended ≤ 8 bar. Or selects the Vacuum Bayonet Connection Type with Flanges and Bolts (≤16 bar), Welded Connection Type (≤64 bar)
Material of Outer Pipe: Without special requirement, the material of inner pipe and outer pipe will be selected the same.
Power Condition: The site needs to supply power to the vacuum pumps and inform HL Cryogenic Equipment the local electricity information (Voltage and Hertz)
|
Model |
Connection Type |
Nominal Diameter of Inner Pipe |
Design Pressure |
Material of Inner Pipe |
Standard |
Remark |
|
HLPDF01000X |
Vacuum Bayonet Connection Type with Flanges and Bolts for Static Vacuum Insulated Piping System |
DN10, 3/8" |
8~16 bar |
300 Series Stainless Steel |
ASME B31.3 |
00: Design Pressure.
08 is 8bar, 16 is 16bar.
X: Material of Inner Pipe. A is 304, B is 304L, C is 316, D is 316L, E is other. |
|
HLPDF01500X |
DN15, 1/2" |
|||||
|
HLPDF02000X |
DN20, 3/4" |
|||||
|
HLPDF02500X |
DN25, 1" |
|||||
|
HLPDF03200X |
DN32, 1-1/4" |
|||||
|
HLPDF04000X |
DN40, 1-1/2" |
|||||
|
HLPDF05000X |
DN50, 2" |
|||||
|
HLPDF06500X |
DN65, 2-1/2" |
|||||
|
HLPDF08000X |
DN80, 3" |
Nominal Diameter of Inner Pipe: Recommended ≤ DN80 or 3". Or selects the Welded Connection Type (from DN10, 3/8" to DN500, 20"), Vacuum Bayonet Connection Type with Clamps (from DN10, 3/8" to DN25, 1").
Nominal Diameter of Outer Pipe: Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Design Pressure: Recommended ≤ 16 bar. Or selects Welded Connection Type (≤64 bar).
Material of Outer Pipe: Without special requirement, the material of inner pipe and outer pipe will be selected the same.
Power Condition: The site needs to supply power to the vacuum pumps and inform HL Cryogenic Equipment the local electricity information (Voltage and Hertz)
|
Model |
Connection Type |
Nominal Diameter of Inner Pipe |
Design Pressure |
Material of Inner Pipe |
Standard |
Remark |
|
HLPDW01000X |
Welded Connection Type for Dynamic Vacuum Insulated Piping System |
DN10, 3/8" |
8~64 bar |
Stainless Steel 304, 304L, 316, 316L |
ASME B31.3 |
00:
Design Pressure 08 is 8bar, 16 is 16bar, and 25, 32, 40, 64. .
X: Material of Inner Pipe. A is 304, B is 304L, C is 316, D is 316L, E is other. |
|
HLPDW01500X |
DN15, 1/2" |
|||||
|
HLPDW02000X |
DN20, 3/4" |
|||||
|
HLPDW02500X |
DN25, 1" |
|||||
|
HLPDW03200X |
DN32, 1-1/4" |
|||||
|
HLPDW04000X |
DN40, 1-1/2" |
|||||
|
HLPDW05000X |
DN50, 2" |
|||||
|
HLPDW06500X |
DN65, 2-1/2" |
|||||
|
HLPDW08000X |
DN80, 3" |
|||||
|
HLPDW10000X |
DN100, 4" |
|||||
|
HLPDW12500X |
DN125, 5" |
|||||
|
HLPDW15000X |
DN150, 6" |
|||||
|
HLPDW20000X |
DN200, 8" |
|||||
|
HLPDW25000X |
DN250, 10" |
|||||
|
HLPDW30000X |
DN300, 12" |
|||||
|
HLPDW35000X |
DN350, 14" |
|||||
|
HLPDW40000X |
DN400, 16" |
|||||
|
HLPDW45000X |
DN450, 18" |
|||||
|
HLPDW50000X |
DN500, 20" |
Nominal Diameter of Outer Pipe: Recommended by the Enterprise Standard of HL Cryogenic Equipment. It also can be produced according to requirement of the customer.
Material of Outer Pipe: Without special requirement, the material of inner pipe and outer pipe will be selected the same.
Power Condition: The site needs to supply power to the vacuum pumps and inform HL Cryogenic Equipment the local electricity information (Voltage and Hertz)
